PRESPEC by Linemaster: Design Phase Development for Custom Medical Foot Switches and Foot Pedals
Medical device OEMs often engage a control manufacturer after the system architecture, interface requirements, and major design inputs have already been established. At that stage, the control can still be engineered and manufactured, but the opportunity to improve ergonomics, usability, risk controls, cleanability, testability, and manufacturability may already be limited.
TL;DR
PRESPEC by Linemaster creates a defined opportunity for earlier collaboration.
By bringing Linemaster into the medical device product development process while meaningful design decisions remain open, OEM teams can evaluate the control as an integral part of the complete system rather than as a component added after the surrounding equipment has been finalized.
What PRESPEC by Linemaster Is
PRESPEC by Linemaster is a formal design phase development program for OEMs creating custom medical foot switches, foot pedals, and other foot operated medical control interfaces.
Developed and operated by a United States based manufacturer specializing in foot operated controls, PRESPEC brings intended use, user needs, system architecture, the clinical environment, regulatory considerations, and production requirements into one coordinated development process.
This coordinated approach provides OEMs with access to one team that understands how design decisions can affect user interaction, product risk, verification, manufacturing, inspection, serviceability, and long term performance.
PRESPEC does not replace the OEM’s established development process. The program strengthens that process by adding specialized medical control expertise while important design choices can still be evaluated and refined.
PRESPEC formalizes a level of early design collaboration that is not commonly available from manufacturers specializing in medical foot switches, foot pedals, and hand controls.
Depending on the needs of the program, Linemaster can support the following:
Why Linemaster is Qualified to Lead the Program
A program such as PRESPEC requires more than general manufacturing capability. It requires detailed knowledge of foot operated controls, medical applications, design controls, risk analysis, verification, and production processes.
That knowledge is developed through repeated work across real applications and direct responsibility for carrying products from early concepts through production.
Linemaster has designed and manufactured foot switches since 1952. The company has supported controls used with surgical equipment, diagnostic and imaging systems, medical robotics, and multifunction medical platforms.
This practical knowledge allows Linemaster to participate as a subject matter expert and medical control development partner rather than only as a build to specification supplier.
The PRESPEC team can help identify questions that may not be apparent in an initial specification and translate those questions into design requirements, risk controls, prototypes, acceptance criteria, test methods, and production considerations.
This experience provides practical insight into control related design challenges such as:
Industrial Design for Medical Device Controls
Linemaster’s industrial design capabilities extend beyond external appearance. Industrial design brings form, function, user interaction, cleanability, and manufacturing feasibility into one coordinated process.
The development team can evaluate enclosure geometry, pedal placement, visual and tactile identification, control spacing, cable routing, stability, surface finish, labeling, cleanability, and integration with the surrounding medical equipment.
These features should not be treated as isolated details addressed late in development. They interact directly with usability, risk management, verification, and production.
Early concept comparison allows designs to be evaluated before tooling, validation, and supply chain commitments have been made. This reduces the likelihood that ergonomic, integration, or manufacturing concerns will force costly changes later in the program.
Ergonomics and Human
Factors for Foot Operated Controls
Medical foot switches and foot pedals are often operated without direct visual attention. Clinicians may be focused on the patient, the procedural field, or the primary equipment interface while locating and actuating the control by feel.
Users may also operate controls while wearing different types of footwear, working from constrained or asymmetrical positions, or maintaining a posture for an extended procedure.
Excessive dorsiflexion or plantar flexion can contribute to discomfort and fatigue. Repeated ankle inversion or eversion, lateral reaching, and sustained leg positioning can also increase physical demand during longer procedures.
The control should support natural foot placement and efficient movement while allowing the user to identify and actuate the intended function without looking down.
Pedal geometry, force, travel, spacing, and tactile response should therefore be evaluated together rather than specified independently.
For foot operated controls, relevant design considerations include:
Iterative Prototyping and Formative Evaluation
PRESPEC supports iterative design work that can generate design evidence and formative evaluation inputs for the OEM’s broader usability engineering process.
Evaluation findings can be incorporated into successive design revisions before the product architecture is finalized.
This iterative process helps prevent the design team from relying entirely on specifications or computer models to predict how the control will feel and perform during actual use.
When applicable, these activities can support the OEM’s human factors engineering and usability engineering process under IEC 62366-1. Linemaster’s work provides control specific development inputs, while the OEM remains responsible for the usability engineering process for the complete medical device.
Check out our Prototyping process and 3D printing capabilities.
Early mockups, rapid prototypes, and functional prototypes allow development teams to evaluate:

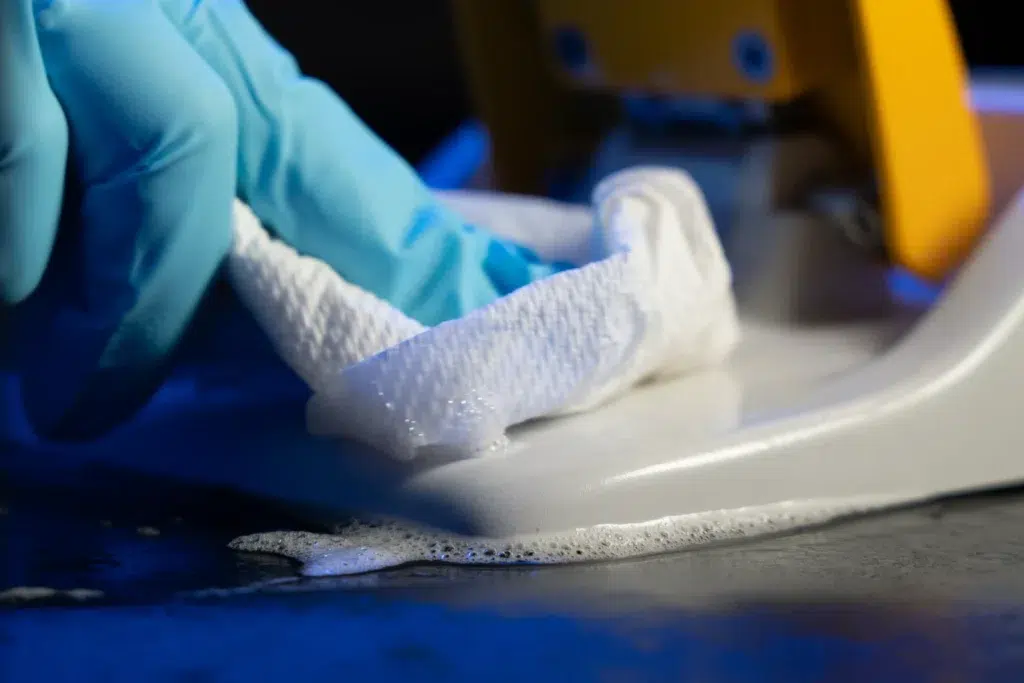

Cleanability and Material Compatibility
Cleanability should be treated as a design input rather than a final appearance consideration.
Medical controls may be exposed to fluids, repeated cleaning, and the disinfecting agents specified by the OEM. Materials, surface finishes, labels, seams, recesses, fasteners, seal interfaces, and transitions between components should all be evaluated for compatibility with the intended cleaning process.
Cleaning agent exposure can affect polymers, adhesives, printed graphics, cable jackets, coatings, and elastomeric seals. These interactions should be evaluated during material selection and verified under representative exposure conditions.
Cleanability considerations can also influence ingress protection requirements and the selection of an appropriate enclosure and sealing strategy.
For a deeper dive on Environmental Protection and Cleanability:
The design should provide accessible surfaces, minimize debris traps, and reduce unnecessary crevices while maintaining:
Potential control related failure modes may include:
Risk Management through DFMEA and PFMEA
Linemaster brings practical experience in Design Failure Mode and Effects Analysis and Process Failure Mode and Effects Analysis.
DFMEA identifies how the control design could fail, the potential effects and causes of those failures, and the design controls or verification activities needed to reduce risk.
PFMEA applies a similar discipline to manufacturing and assembly. It helps identify how process variation, incorrect assembly, material conditions, tooling, inspection methods, or test methods could affect product performance.
Within PRESPEC, DFMEA and PFMEA are treated as active engineering tools rather than documentation completed after the design and manufacturing process have already been established.
DFMEA should begin early in development. PFMEA should be initiated as the manufacturing and assembly processes become defined. Both analyses should be updated as the design and production approach evolve.
Actions resulting from the analysis can be connected directly to design changes, design inputs, acceptance criteria, inspection methods, process controls, and verification testing.
This component and process level knowledge can support the OEM’s overall medical device risk management activities, including a broader process aligned with ISO 14971.
Linemaster’s analysis does not replace the OEM’s system level risk management responsibilities. It provides a stronger technical foundation for evaluating the control, its foreseeable failure modes, and its contribution to the safety and performance of the complete medical device.
Applying this risk based approach during development reduces the chance that significant concerns will appear for the first time during formal verification, validation, or production launch.
For more information on DFMEA and Risk Analysis:
Verification and Testing Support
Risk management and verification planning are most effective when they develop together.
Through PRESPEC, Linemaster can help translate design inputs and identified risks into measurable test methods, defined acceptance criteria, and documented results. This allows testability to influence the design before the product reaches formal design verification.
Testing can also be developed for application specific failure conditions, redundant control functions, fault detection features, and continued performance following a defined stress or simulated use condition.
Depending on the required method and capability, testing may be performed by Linemaster or coordinated with a qualified external laboratory.
Depending on the application, development and verification activities may include:
Support for IEC 60601 Related Development
Linemaster can support component and subsystem level development activities relevant to the IEC 60601 series, including evaluation of the control’s contribution to basic safety, essential performance, and applicable system risk controls.
Linemaster can support the OEM by developing control specific requirements, risk controls, test methods, and documented evidence.
Formal compliance and certification of the complete medical electrical equipment or system remain the responsibility of the OEM and may require evaluation by an accredited third party laboratory.
Bringing these considerations into the design phase creates a clearer connection between requirements, risks, design controls, test methods, acceptance criteria, and final results.
It also allows ambiguous requirements or design weaknesses to be addressed while they are still practical to correct.
The specific standards, clauses, and test methods depend on:
Manufacturing Experience and Design Transfer
PRESPEC is not a consulting service separated from production. It is an extension of Linemaster’s industrial design, engineering, testing, and manufacturing capabilities.
Concepts are evaluated from the beginning with consideration for materials, tooling, tolerances, component availability, assembly methods, sealing processes, cable construction, production inspection, functional testing, process capability, serviceability, and supply continuity.
This supports design for manufacturability, assembly, inspection, and test throughout development. Industrial design and engineering decisions are evaluated not only for appearance and function, but also for whether the product can be manufactured consistently at the required volume and quality level.
As the design moves toward production, Linemaster can help establish the drawings, specifications, bills of material, work instructions, inspection criteria, test requirements, tooling, fixtures, and process controls needed to manufacture the control.
The design transfer process should confirm that production documentation accurately reflects the approved design and that manufacturing methods can consistently achieve the defined requirements.
This continuity supports a more efficient transition from concept development through design verification and production release. It also reduces the knowledge loss that can occur when design and manufacturing are performed by separate organizations.
Linemaster operates under an ISO 13485 certified quality management system supporting medical control product development and manufacturing. For the exact scope of certification, refer to Linemaster’s current ISO 13485 certificate.
This quality system foundation supports the documentation, traceability, verification, and process control expected in medical device programs.
Connecting development and manufacturing within one organization provides continuity between:
What PRESPEC Provides to
Medical Device OEMs
PRESPEC gives medical device OEMs earlier access to specialized control expertise without disrupting the development process they already use.
Linemaster contributes focused expertise in custom medical foot switches, medical foot pedals, and related foot operated control interfaces.
The result is a control developed around the application rather than adapted to it after the surrounding system has already been finalized.
Ergonomics, human factors, industrial design, risk controls, cleanability, environmental performance, verification, and manufacturability are addressed as connected design considerations rather than separate late stage corrections.
This approach can reduce avoidable design changes, improve the quality of development documentation, and support a more efficient transition from concept through verification and production.
By the time the design is ready for production, the control has been developed in direct coordination with the broader medical system and its functional, usability, safety, and manufacturing requirements.
That is the practical improvement PRESPEC is designed to provide.
The OEM continues to define:
Begin Your PRESPEC
Development Program
PRESPEC provides medical device OEMs with direct access to Linemaster’s experience in industrial design, ergonomics, human factors, risk management, verification, design transfer, and medical control manufacturing.
If your application requires a custom medical foot switch, foot pedal, or hand control, the design discussion should begin before the major interface and architecture decisions are finalized.
Contact the PRESPEC team to discuss your intended use, user needs, performance requirements, development stage, and anticipated production needs.
