| SL2-SWBNO410$113.35 | |
|---|---|
| Switch Type | Electrical |
| Actions | 2-Stage Momentary |
| Circuitries | SPDT wired NO |
| Cable Entries | Adjustable strain relief clamp |
| Cordsets | 10-ft cordset, no plug |
| Housing Colors | Gray, light |
| Housing Materials | Polymeric |
| Switch Connections | Pre-wired |
| Electrical Ratings | 5A Resitive, 125 VAC, 5A, 250 VAC |

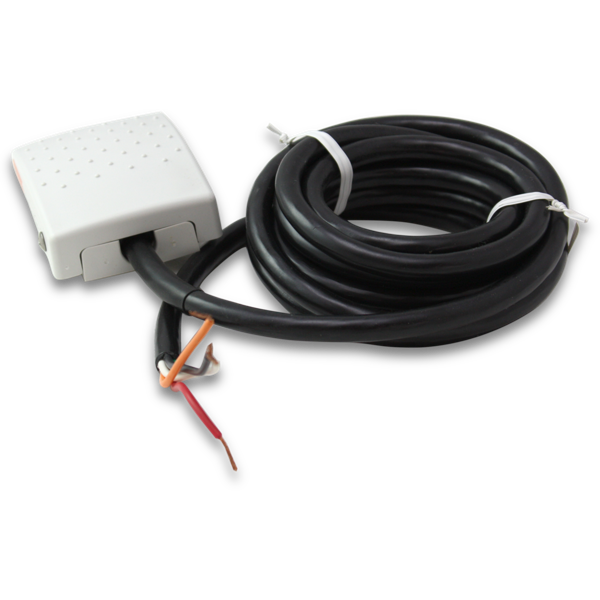

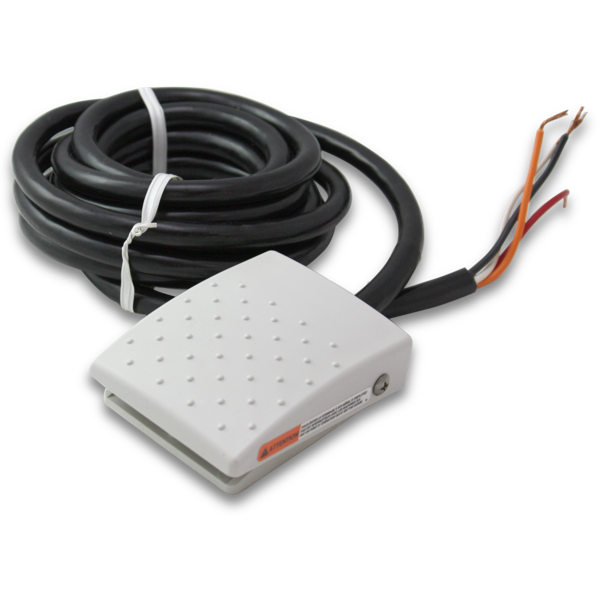

Slim-Line
$113.35
Momentary • 2 Stage • SPDT • 4 Conductor Cord
Price Reflects US Orders Only
Enclosure
NEMA & UL ENCLOSURE Type 6P • EN 60529 Degree of Protection • IP68
Purpose
Small Lightweight Low Profile Design • Drip Tight • Dust Tight • Watertight • Rust Proof • Corrosion Resistant
Features & Benefits
- Maximum versatility, total performance in a small package
- Rustproof and corrosion Resistant
- Mounting holes provided for rigid mounting to floor and or equipment
- Non-Skid Feet
- Raised Dimples on treadle for positive traction during operation
- 10A 125-250 VAC rating
- Designed to meet UL, CSA & CE requirments
Materials
- Cover & Base formed from Light Gray (PMS 427C) ABS Polymeric Material
- Non-glare finish
- Silver Alloy contacts
- SPDT, DPDT, Two-Stage, Momentary Operation
- Integrated adjustable strain relief clamp accommodates cord sizes from .250 Dia. to .400 Dia
