More Information
| 971-DJM$54.70 | |
|---|---|
| Switch Type | Electrical |
| Actions | Single Stage Maintained |
| Circuitries | SPST-NO (Form "A") |
| Cable Entries | Adjustable strain relief clamp |
| Housing Colors | Black |
| Housing Materials | Cast Zinc |
| Switch Connections | Solder terminal, Quick-connect terminal |
| Electrical Ratings | 12A 1HP 250 VAC, 1/2HP 125 VAC |

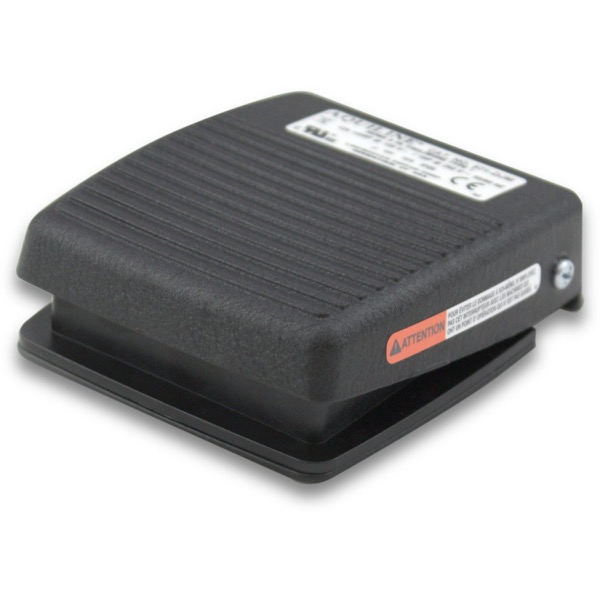

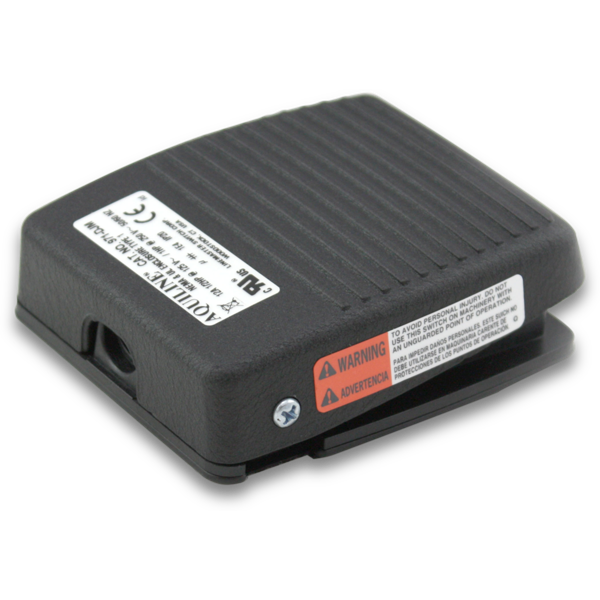

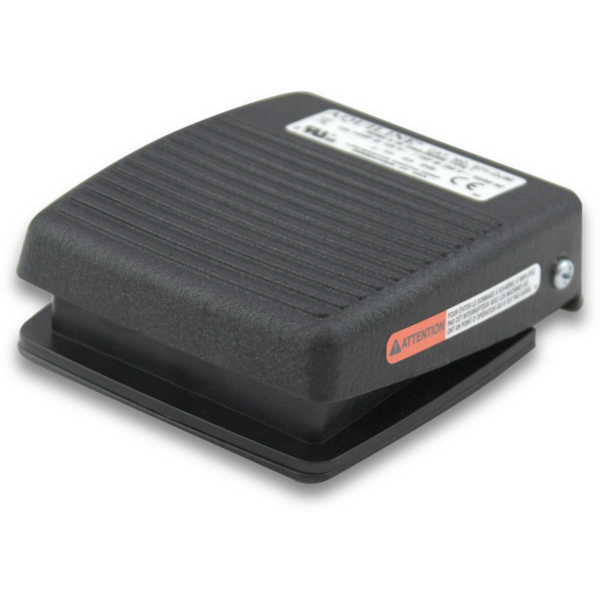

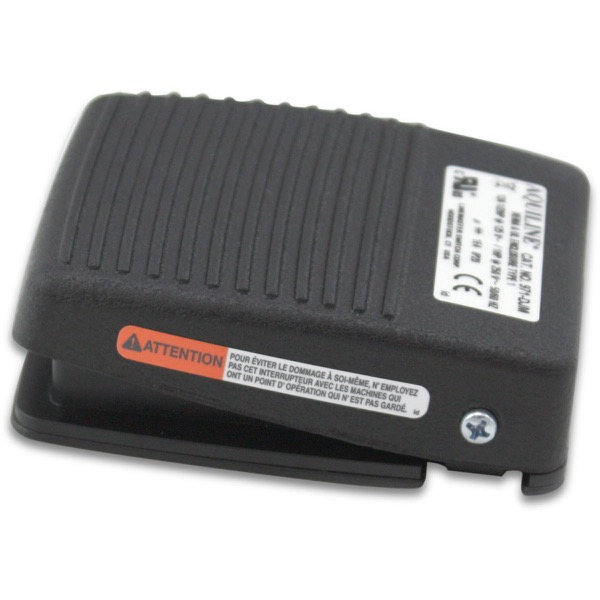

Aquiline Maintained - Metal
$54.70
Maintained • Not Corded
Price Reflects US orders only
Enclosure
NEMA Type 1 • UL ENCLOSURE Type 1 • EN 60529 Degree of Protection • IP20
Purpose
Versatile Compact Design
Features & Benefits
- Maximum versatility, total performance
- Non-skid base pad
- 2 holes provided for rigid mounting to Floor or equipment
- Twin model has Electrical Interlock feature
Materials
- SPDT, DPDT, Two-Stage, Momentary or Maintained Operation
- Rustproof and corrosion proof cast zinc cover and formed steel base
- Raised ribs on treadle for positive traction during operation
- Integrated adjustable strain relief clamp accommodates cord sizes from .250 Dia. to .400 Dia.
Download product data sheet
More Information
| 971-DJM$54.70 | |
|---|---|
| Switch Type | Electrical |
| Actions | Single Stage Maintained |
| Circuitries | SPST-NO (Form "A") |
| Cable Entries | Adjustable strain relief clamp |
| Housing Colors | Black |
| Housing Materials | Cast Zinc |
| Switch Connections | Solder terminal, Quick-connect terminal |
| Electrical Ratings | 12A 1HP 250 VAC, 1/2HP 125 VAC |
