| 532-SWHOC2$201.55 | |
|---|---|
| Cable Entries | Dual 1/2""-14 NPT threaded entry |
| Shields & Guards | Oversized shield (cast aluminum) |
| Switch Connections | Screw terminal |
| Electrical Ratings | 20 A 125-250 VAC, 1 H.P. 125-250 VAC, Heavy Pilot Duty 250 VAC Max. |

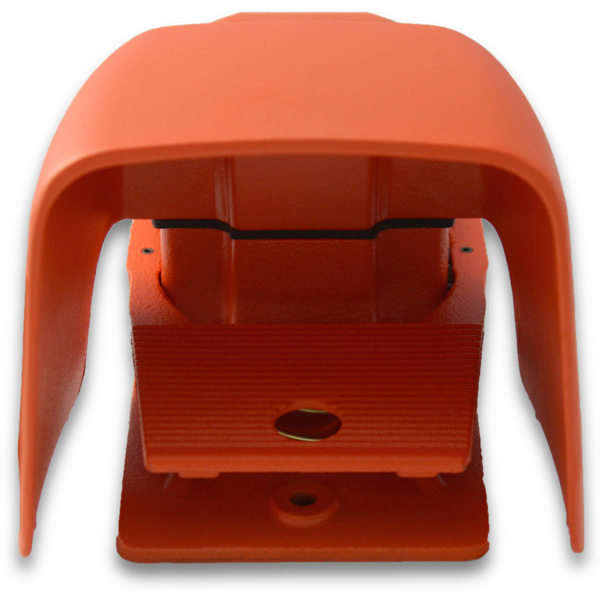

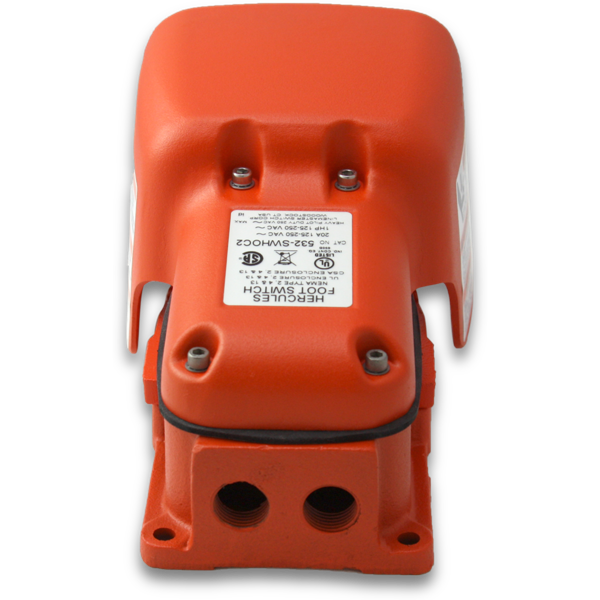

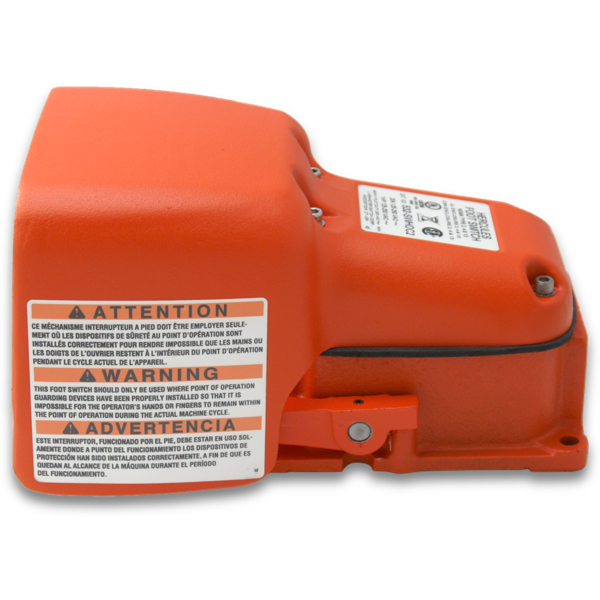

Hercules - O Shield
$201.55
ApplicationsView less
- Benders
- Box Marker
- Brakes
- Chopper
- Cleaner
- Closing System
- Conveyor Systems
- Crimping Machine
- Cut Off Machines for Pipe and Tubing
- Cutter
- Cutting Machine
- Drilling Machine
- Drilling Table
- Fabricator
- Filler Removal Machine
- Folding Machine
- Food Processing Equipment
- Forming System
- Grinder
- Grinding Machine
- Lacers
- Lathes
- Lift
- Marking System
- Material Handlers
- Microscopes
- Missile Launching Control Systems
- Molding Machines
- Nibbler
- Notcher
- Oil Drilling Rigs
- Platforms
- Positioners
- Potters Wheels
- Puller
- Punching Equipment
- Rewind System
- Riveter
- Roll Groover
- Router
- Saw
- Saw Mill
- Scrap Chopper
- Sewer Cleaning Equipment
- Shears
- Shoe Machine
- Shredder
- Space Shuttle
- Spinners
- Stapler
- Surgical Equipment
- Tables
- Tester
- Thread Rolling Machine
- Threading Machine
- Trimming Beading and Forming Machines
- Beading & Forming Machines
- Tube-end Forming Machines
- Tube Expansion Device
- Turn/Mill Centers
- Turner
- Turning Centers
- Turntable
- Tying & Bundling Machines
- Voltage Control
- Water Cannon
- Welders
- Winding Equipment
- Wire Drawing System
Hercules - O Shield
$201.55
Momentary • Single Stage • DPDT • Dual Conduit
Enclosure
NEMA Type 2, 4, 13 • UL ENCLOSURE 2, 4, 13 • CSA ENCLOSURE 2, 4, 13
Purpose
Drip tight • Dust tight • Watertight • Oil tight
Features & Benefits
- Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated
- All Models have a neoprene Cover Gasket plus O-Rings on the Actuating shaft and separate ground screw
- In all Maintained Contact models the release is accomplished by simply pressing the latch with a light forward movement of the toe. The release is placed under the Full Shield so falling objects cannot easily release it
- 3 holes provided for rigid mounting to the floor or equipment
Materials
- Treadle and housing constructed from cast iron for strength and durability
- Protected by a strong cast aluminum shield
- Painted Alert Orange
- Single 3/4"-14 N.P.T. threaded conduit entry is standard
More Information
| 532-SWHOC2$201.55 | |
|---|---|
| Cable Entries | Dual 1/2""-14 NPT threaded entry |
| Shields & Guards | Oversized shield (cast aluminum) |
| Switch Connections | Screw terminal |
| Electrical Ratings | 20 A 125-250 VAC, 1 H.P. 125-250 VAC, Heavy Pilot Duty 250 VAC Max. |
