| SP-831-111100XA$1,094.70 | |
|---|---|
| Switch Type | Wireless |
| Actions | Momentary |
| Circuitries | SPDT |
| Housing Colors | Orange |
| Housing Materials | Cast Aluminum |
| Shields & Guards | OX Shield |

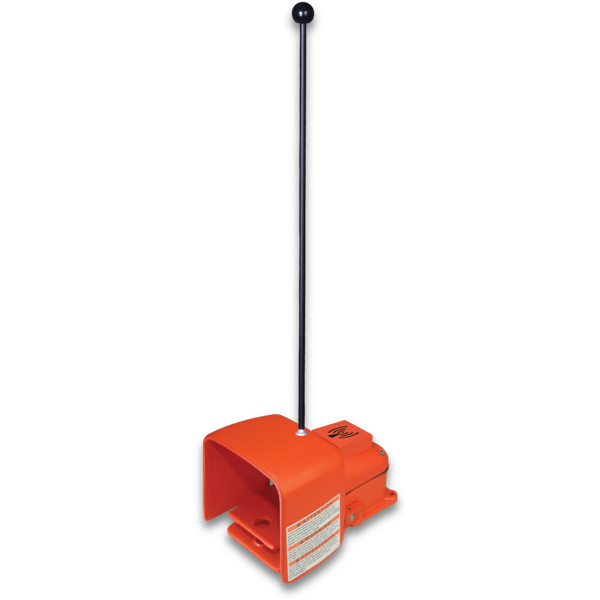

RF Wireless Hercules with Handle
$1094.70
ApplicationsView less
- Benders
- Box Marker
- Brakes
- Chopper
- Cleaner
- Closing System
- Conveyor Systems
- Crimping Machine
- Cut Off Machines for Pipe and Tubing
- Cutter
- Cutting Machine
- Drilling Machine
- Drilling Table
- Fabricator
- Filler Removal Machine
- Folding Machine
- Food Processing Equipment
- Forming System
- Grinder
- Grinding Machine
- Lacers
- Lathes
- Lift
- Marking System
- Material Handlers
- Microscopes
- Missile Launching Control Systems
- Molding Machines
- Nibbler
- Notcher
- Oil Drilling Rigs
- Platforms
- Positioners
- Potters Wheels
- Puller
- Punching Equipment
- Rewind System
- Riveter
- Roll Groover
- Router
- Saw
- Saw Mill
- Scrap Chopper
- Sewer Cleaning Equipment
- Shears
- Shoe Machine
- Shredder
- Space Shuttle
- Spinners
- Stapler
- Surgical Equipment
- Tables
- Tester
- Thread Rolling Machine
- Threading Machine
- Trimming Beading and Forming Machines
- Beading & Forming Machines
- Tube-end Forming Machines
- Tube Expansion Device
- Turn/Mill Centers
- Turner
- Turning Centers
- Turntable
- Tying & Bundling Machines
- Voltage Control
- Water Cannon
- Welders
- Winding Equipment
- Wire Drawing System
RF Wireless Hercules with Handle
$1094.70
Momentary • Single Stage • SPDT • Not Corded
Price Reflects US Orders Only
Enclosure
EN 60529 Degree of Protection • IP68 • FCC
Purpose
Drip tight • Dust tight • Watertight • Oil Tight
Features & Benefits
- Removes clutter of wires under foot
- IP68 fully submersible in the water Transmitter
- IPX1 Degree of Protection for the Receiver
- Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated
- All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw
- Heavy duty weather resistant construction for harsh environments Momentary actuation Contacts: single pole, double throw, up to 10 amp service
- Multiple systems may be used in the same vicinity at the same time
- 700 hours of battery life at 50% duty cycle
- 3 (AA) batteries required for Transmitter
- 3 holes provided for rigid mounting to the floor of equipment
- 802.15.4 Compliant
- 2.405 – 2.480 GHz, 15 Channels Available
- All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw
Materials
- Treadle and housing constructed from cast iron for strength and durability
- Protected by a strong cast aluminum oversized shield
- Painted Alert Orange
Download product data sheet
More Information
| SP-831-111100XA$1,094.70 | |
|---|---|
| Switch Type | Wireless |
| Actions | Momentary |
| Circuitries | SPDT |
| Housing Colors | Orange |
| Housing Materials | Cast Aluminum |
| Shields & Guards | OX Shield |
