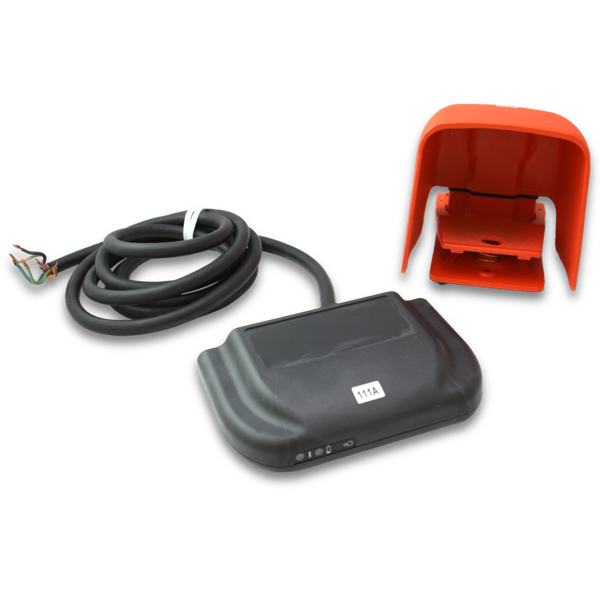

Radio Frequency Wireless Hercules
$1052.85
Momentary • Single Stage • DPDT • Not Corded
Removes the clutter of wires under foot in the working environment. Heavy duty weather resistant construction for harsh environments. Momentary actuation - Contacts: Single pole, single throw, up to 10 amp service. Available in up to 3 switch functions. Multiple systems may be used in the same vicinity at the same time. 40 foot range of RF Transmission. 400 hours of battery life at 50% duty cycle. 3 AA batteries required for the Transmitter
Price Reflects US Orders Only • Currently Unavailable
Enclosure
EN 60529 Degree of Protection • IP68 FCC
Purpose
Drip tight • Dust tight • Watertight • Oil tight
Features & Benefits
- Removes clutter of wires under foot
- IP68 fully submersible in water Transmitter
- IPX1 Degree of Protection for the Receiver
- Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated/ All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw
- Heavy duty weather resistant construction for harsh environments
- Momentary actuation Contacts: single pole, double throw, up to 10 amp service
- Available in up to 3 switch functions
- Multiple systems may be used in the same vicinity at the same time
- 40 foot range of RF transmission
- 700 hours of battery life at 50% duty cycle
- 3 (AA) batteries required for Transmitter
- 3 holes provided for rigid mounting to the floor or equipment
- Available for US and European service/ 802.15.4 Compliant
- 2.405-2.480 GHz, 15 Channels Available
- 802.15.4 Compliant
- All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw
Materials
- Treadle and housing constructed from cast iron for strength and durability
- Protected by a strong cast aluminum oversized shield
- Painted Alert Orange
