| 601-EX$617.50 | |
|---|---|
| Switch Type | Electrical |
| Actions | Single Stage Momentary |
| Circuitries | SPDT (Form "C") |

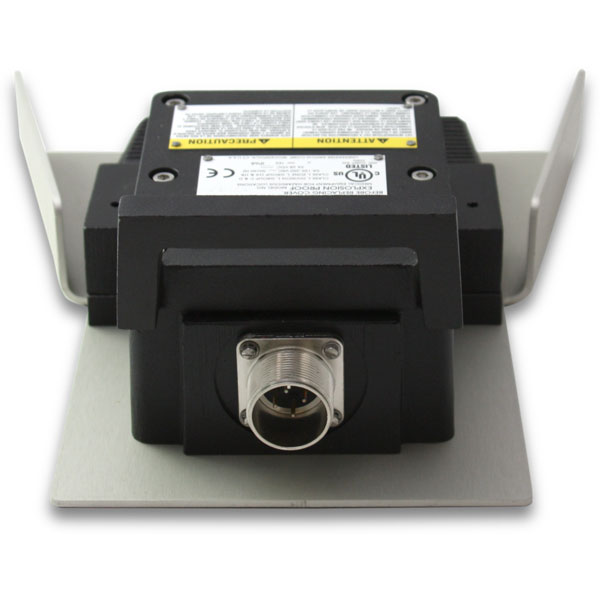

| Cable Entries | Circular connector _ potted |
| Housing Colors | Black |
| Housing Materials | Cast Aluminum |
| Switch Connections | Screw terminal |
| Electrical Ratings | 5A, 125-250 VAC, 3A, 28 VDC |

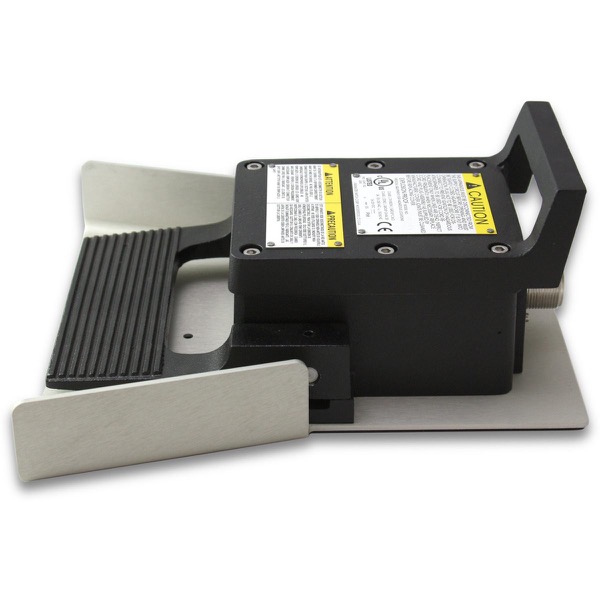

Explosion Proof - Medical 600
$617.50
Momentary • SPDT • Not Corded
Price Reflects US orders only
Enclosure
CLASS 1 • DIVISION 1 • Zone 1 • GROUP IIA & IIB • EN 60529 Degree of Protection • IP68 IEC 60601-2-2
Purpose
Not for use in Industrial Applications • Equipment for Hazardous Locations
Features & Benefits
- Non sparking cast aluminum housing
- The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time
- Two pedal models prewired with electrical interlock
Materials
- Medical Explosion Proof foot switch Series 600 is a UL Listed construction that allows the addition of sealing O-rings on the pivot rod and between the base and cover
- This is accomplished by increasing the thickness of the housing wall, without negating the integrity of the metal to metal contact required to qualify as explosion proof
- Aluminum base plate with nonskid conductive rubber base pad
- Foot switch painted black
- Integral handle for ease of moving
