How does a Microswitch work?

They’re called microswitches because of the incredibly fast snap-action they perform. When pressed, they make a crisp clicking sound. That click isn’t just satisfying; it’s instant feedback that the circuit’s switched.

Microswitches were first developed in the U.S. in the 1930s and quickly earned a reputation for reliability, speed, and long life. Today, they’re everywhere, from smart home gadgets to safety systems. A common example is in microwave ovens, when you close the door, a microswitch detects it and allows the microwave to run. If the door isn’t shut all the way, the microswitch keeps it from turning on.

How Does a Microswitch Work?

At its core, a microswitch is a simple electromechanical switch made up of three key parts:

• Actuator – The part you press or trigger (like a button, lever, or roller).

• Contacts – Open and close the circuit.

• Spring – Delivers the snap-action that makes microswitches so responsive.

Let’s walk through how it works:

1. The actuator is pressed
A small amount of pressure moves the actuator just slightly but that’s enough to engage the mechanism inside.

2. The spring gets to work
As the actuator moves, it engages an internal spring. This spring stores mechanical energy as it’s flexed or stretched. Once it hits a tipping point, the stored energy quickly releases-snapping the switch into action.

3. Snap action kicks in
The spring rapidly snaps the contacts from one position to another, turning the circuit ON or OFF in an instant. That quick motion is what makes microswitches so dependable.

4. The circuit changes

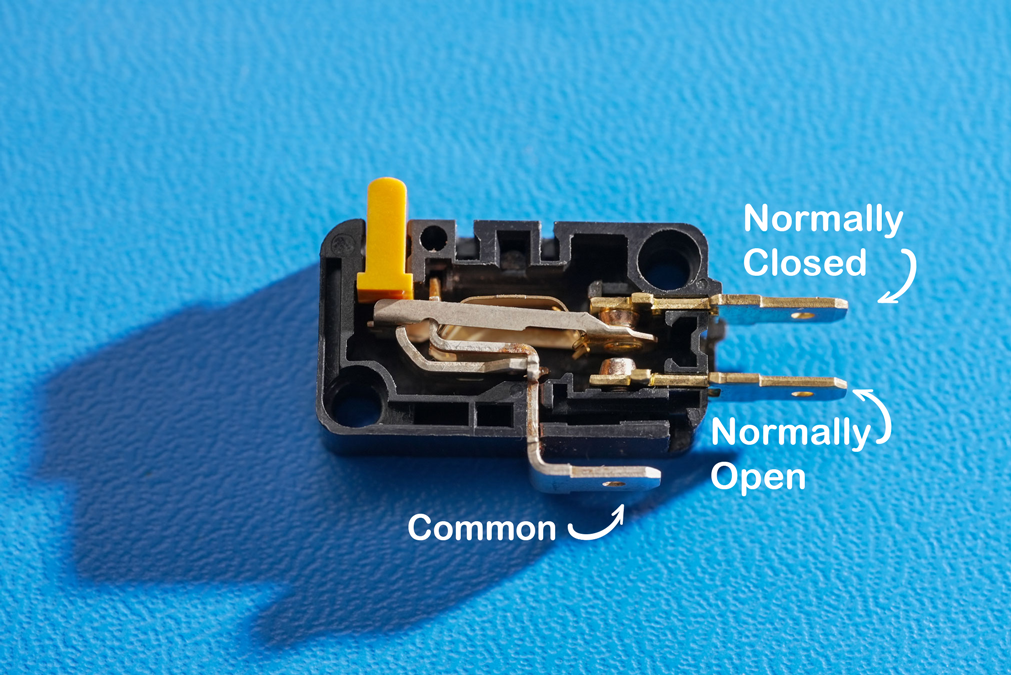

Here’s how the wiring typically works in a Single Pole Double Throw (SPDT) switch:

• Common (C) – The shared terminal in the switch.

• Normally Closed (NC) – Connected to Common when the switch isn’t pressed.

• Normally Open (NO) – Connected to Common only when the switch is pressed.

When the actuator moves, the contact flips from NC to NO. When released, it snaps right back.

5. Reset
Once you let go, the spring resets everything, and the switch is ready to go again.

Why Use a Microswitch?

• Reliable – Many manufacturers offer switches rated for millions of cycles without failure.

• Fast – Reacts instantly with very little movement.

• Feedback – That click confirms it worked.

• Versatile – Found in vending machines, HVAC systems, power tools, medical gear; you name it.

• Safe – Built into interlocks and safety systems to prevent equipment from running in unsafe conditions.

Real-World Example:

Ever notice how your microwave light turns on the moment you crack the door open? That’s a microswitch doing its thing, detecting the door’s position and either completing or breaking the circuit.

Final Thoughts:

Microswitches may be small, but they punch way above their weight. From industrial machines to household gadgets, they quietly keep things running safely and reliably. The next time you hear that sharp click, just know it’s a little piece of engineering doing its job fast, precise, and built to last.
