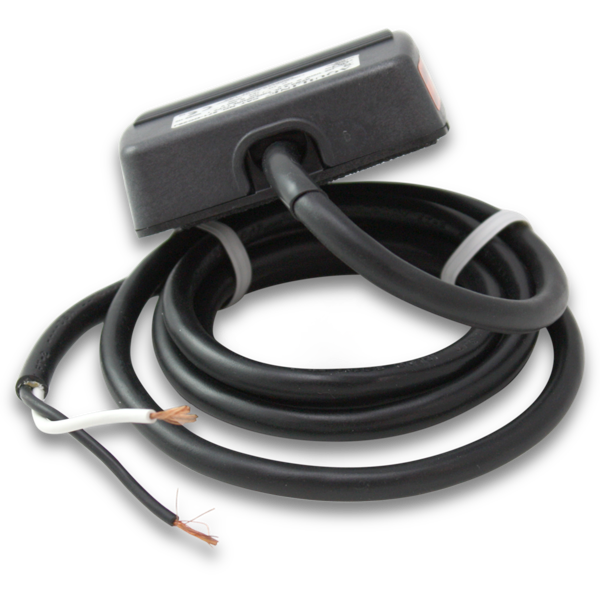

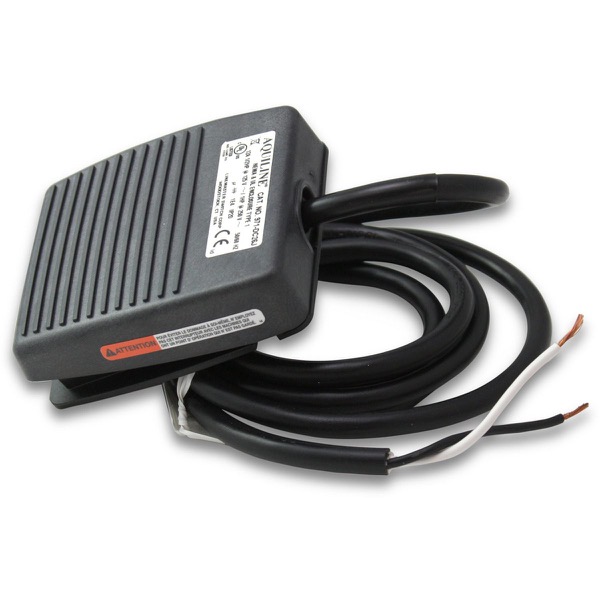

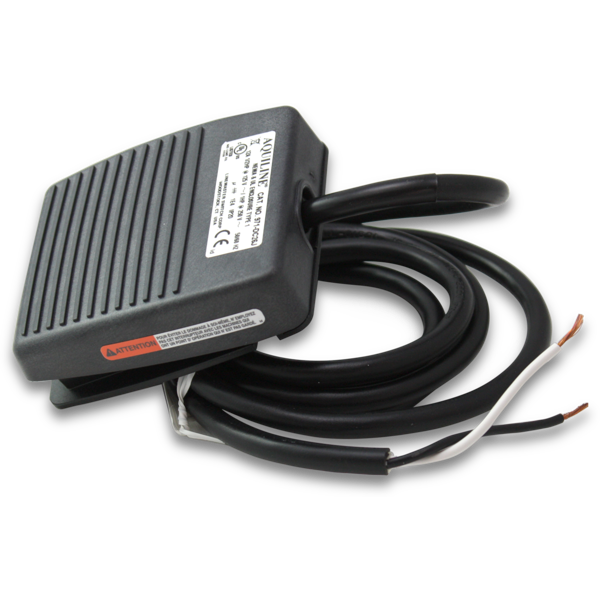

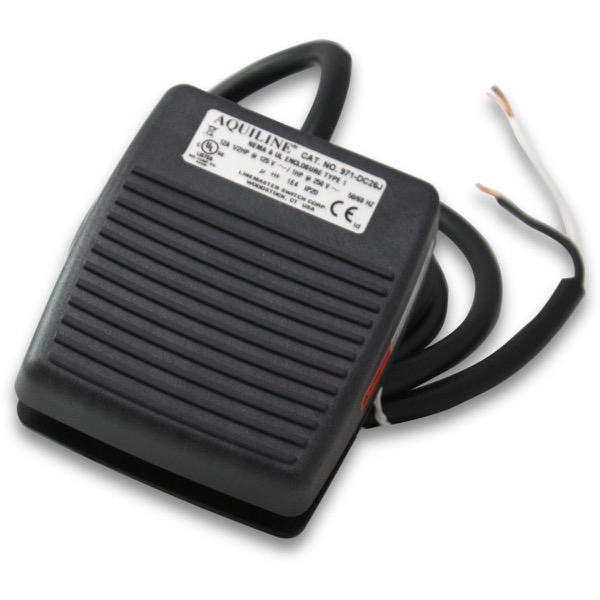

Aquiline Maintained - Polymeric
$57.30
Maintained • 8ft Corded
Enclosure
NEMA Type 1 • UL ENCLOSURE Type 1 • EN 60529 Degree of Protection • IP20
Purpose
Versatile Compact Design • Corrosion Resistant
Features & Benefits
- Flame retardant to 94-VI
- Maximum versatility, total performance
- Non-skid base pad
- 2 holes provided for rigid mounting to Floor or equipment
Materials
- SPST, Maintained Operation
- Rustproof and corrosion proof reinforced polymeric material
- Raised ribs on treadle for positive traction during operation
- Integrated adjustable strain relief clamp accommodates cord sizes from .250 Dia. to .400 Dia.
Download product data sheet
More Information
| 971-DC28J$57.30 | |
|---|---|
| Switch Type | Electrical |
| Actions | Single Stage Maintained |
| Circuitries | SPST-NO (Form "A") |
| Cable Entries | Adjustable strain relief clamp |
| Cordsets | 8-ft cordset, no plug |
| Housing Colors | Gray, dark |
| Housing Materials | Polymeric |
| Switch Connections | Quick-connect terminal, Solder terminal, Pre-wired |
| Electrical Ratings | 12A, 1 H.P. 250 VAC, 1/2 H.P. 125 VAC |
