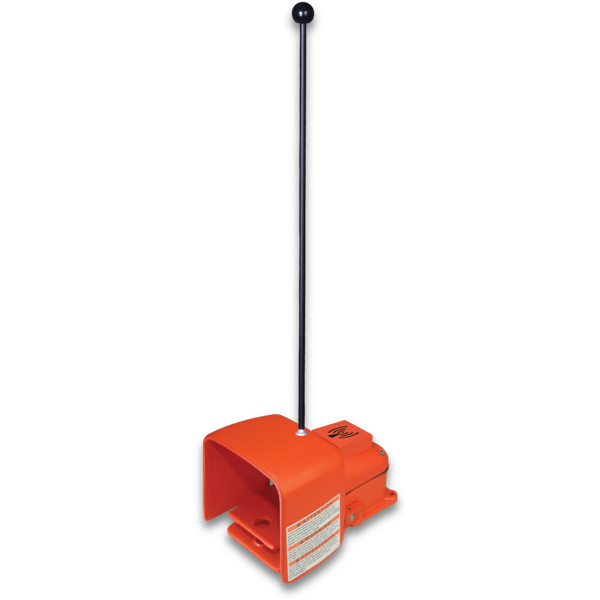

RF Wireless Hercules with Handle
$1094.70
Momentary • Single Stage • SPDT • Not Corded
Enclosure
EN 60529 Degree of Protection • IP68 • FCC
Purpose
Drip tight • Dust tight • Watertight • Oil Tight
Features & Benefits
- Removes clutter of wires under foot
- IP68 fully submersible in the water Transmitter
- IPX1 Degree of Protection for the Receiver
- Rugged cast metal enclosure has sufficient weight to keep the switch from sliding when being operated
- All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw
- Heavy duty weather resistant construction for harsh environments Momentary actuation Contacts: single pole, double throw, up to 10 amp service
- Multiple systems may be used in the same vicinity at the same time
- 700 hours of battery life at 50% duty cycle
- 3 (AA) batteries required for Transmitter
- 3 holes provided for rigid mounting to the floor of equipment
- 802.15.4 Compliant
- 2.405 – 2.480 GHz, 15 Channels Available
- All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw

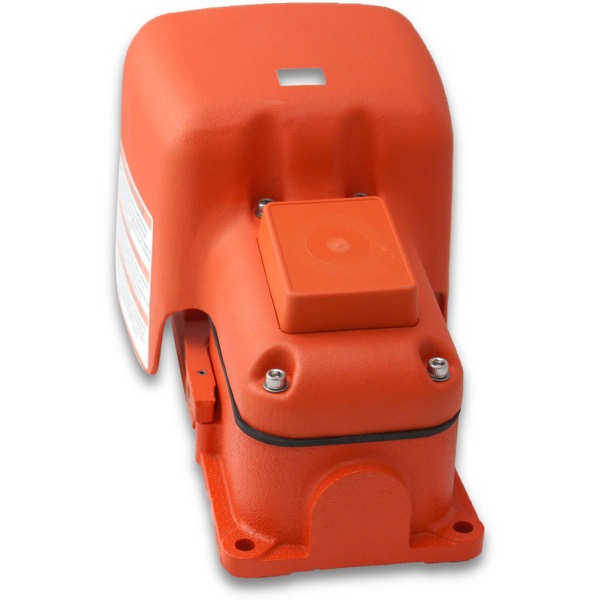

Materials
- Treadle and housing constructed from cast iron for strength and durability
- Protected by a strong cast aluminum oversized shield
- Painted Alert Orange
Download product data sheet
More Information
| SP-831-111100XA$1,094.70 | |
|---|---|
| Switch Type | Wireless |
| Actions | Momentary |
| Circuitries | SPDT |
| Housing Colors | Orange |
| Housing Materials | Cast Aluminum |
| Shields & Guards | OX Shield |
